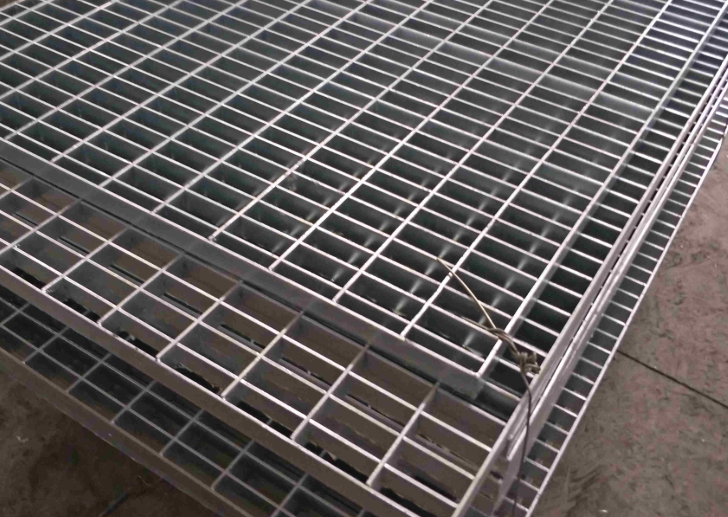

Heavy Duty Hot Dip Galvanised Steel Grating For Driveway / Walkways 45*5mm

Brand Name : LJ

Model Number : LJ-08

Certification : ISO9001,SGS,CE

Place of Origin : Hebei Province,China

MOQ : 50 pcs

Price : $5.3-15.8 per square meter

Payment Terms : L/C,T/T

Supply Ability : 5000 pcs / week

Delivery Time : according to the quantity

Packaging Details : by steel pallet

Product Name : Steel Grating

Key Word : Steel Walkway Grating

Material : Low Carbon Steel,Stainless Steel

Type : Plain surface, Serrated surface

Bear Bar Size : 20*3mm,30*4mm,40*5mm,etc

Bear Bar Pitch : 30mm,40mm,60mm,etc

Surface Treatment : Hot-Dip Galvanized / Painted

Application : Industrial Walkways, Platforms, Stairs, Drain Covers

Port of Loading : Xingang Port

Contact Now

Heavy Duty Hot Dip Galvanized Steel Grating for Driveway / Walkways 45*5mm

Description of Steel Grating

Steel gratings devide into two types: Welded bar grating&Press lock grating.

Welded bar grating is also called metal open bar grating.The bearing bars and cross bars are welded under high heat and pressure to form a permanent joint.

And there are two types of the steel bar grating: smooth and serrated steel bar gratings. But the serrated steel grating have better skid resistant property than the smooth surface steel bar grating.

Press lock grating is also called pressed grating or pressure lock grating, which is made of low carbon steel, stainless steel or aluminum. The press-locked grating is constructed with two close-tolerance slotted bars bonded together by tremendous hydraulic pressure.With high strength and firm structure, it's widely used in industrial factories or parks, commercial buildings, municipal engineering as stair treads, platforms, walkways, security screens, tree covers, trench covers, drainage covers and so on.

Specifications of Steel Grating

Bearing Bar Pitch	Cross Bar Pitch	Load steel size (Width * Thickness)
Bearing Bar Pitch	Cross Bar Pitch	20*3	25*3	32*3	40*3	20*5	25*5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50	G203/50/60	G253/50/60	G323/50/60	G403/50/60	G205/50/60	G255/50/60
Bearing Bar Pitch	Cross Bar Pitch	Load steel size (Width * Thickness)
Bearing Bar Pitch	Cross Bar Pitch	32*5	40*5	45*5	50*5	55*5	60*5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/50/60	G405/50/60	G455/50/60	G505/50/60	G555/50/60	G605/50/60

Features of Steel Grating

1. Light weight

2. great load-bearing capacity

3. non-slip and safe

4. easy installation

5. material-economic

6. sturdy and durable

7. ventilated, easy to clean and attractive appearance.

Applications of Steel Grating

1 Power plant

2 Chemical plant

3 Oil Refinery

4 Steel plant

5 Paper-making factory

6 Architectural and Decorative

7 Cement plant

8 Civil engineering

9 Wastewater treatment

10 Pharmacy industry

11 Food processing
